The electric flanged butterfly valve is an essential component in various industrial applications, known for its reliability and efficiency in controlling the flow of liquids and gases. This article delves into the design, functionality, advantages, and applications of electric flanged butterfly valves, providing a comprehensive overview for engineers and industry professionals.
Design and Structure

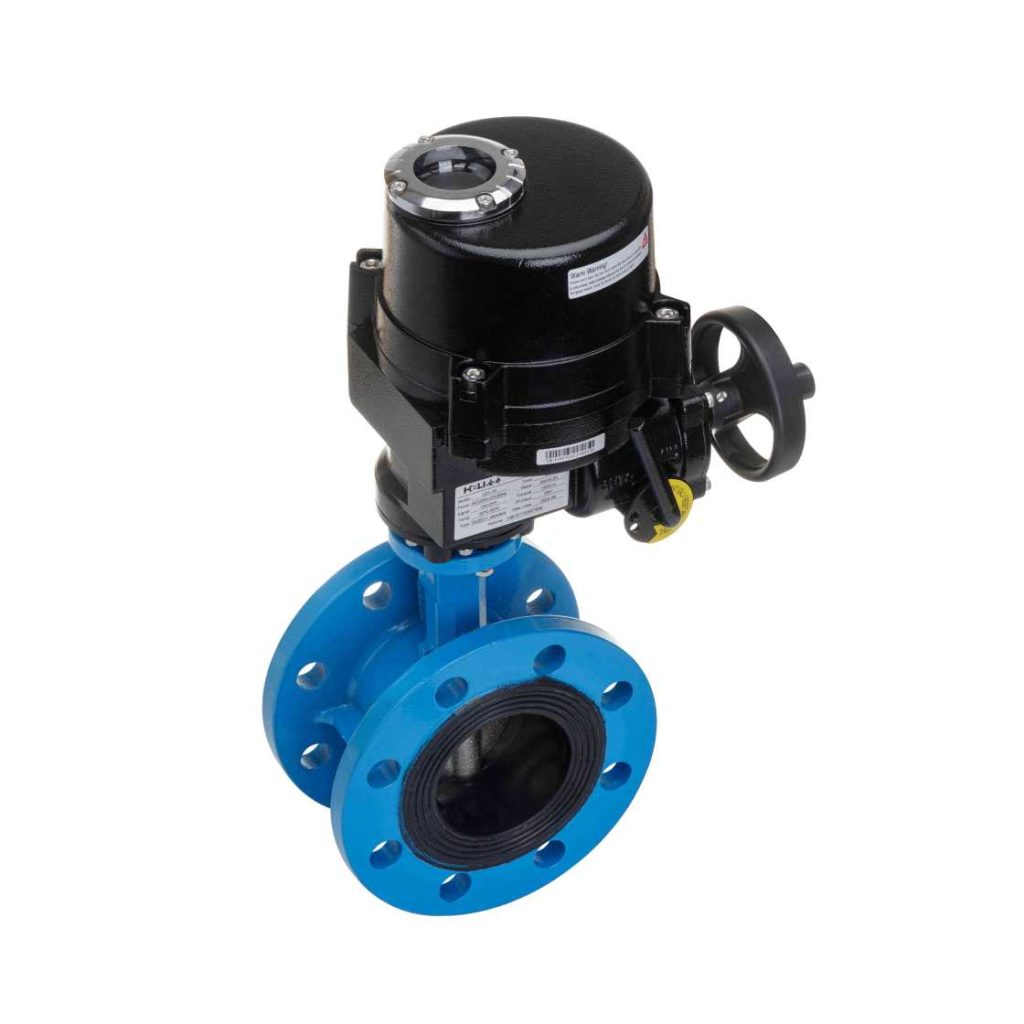

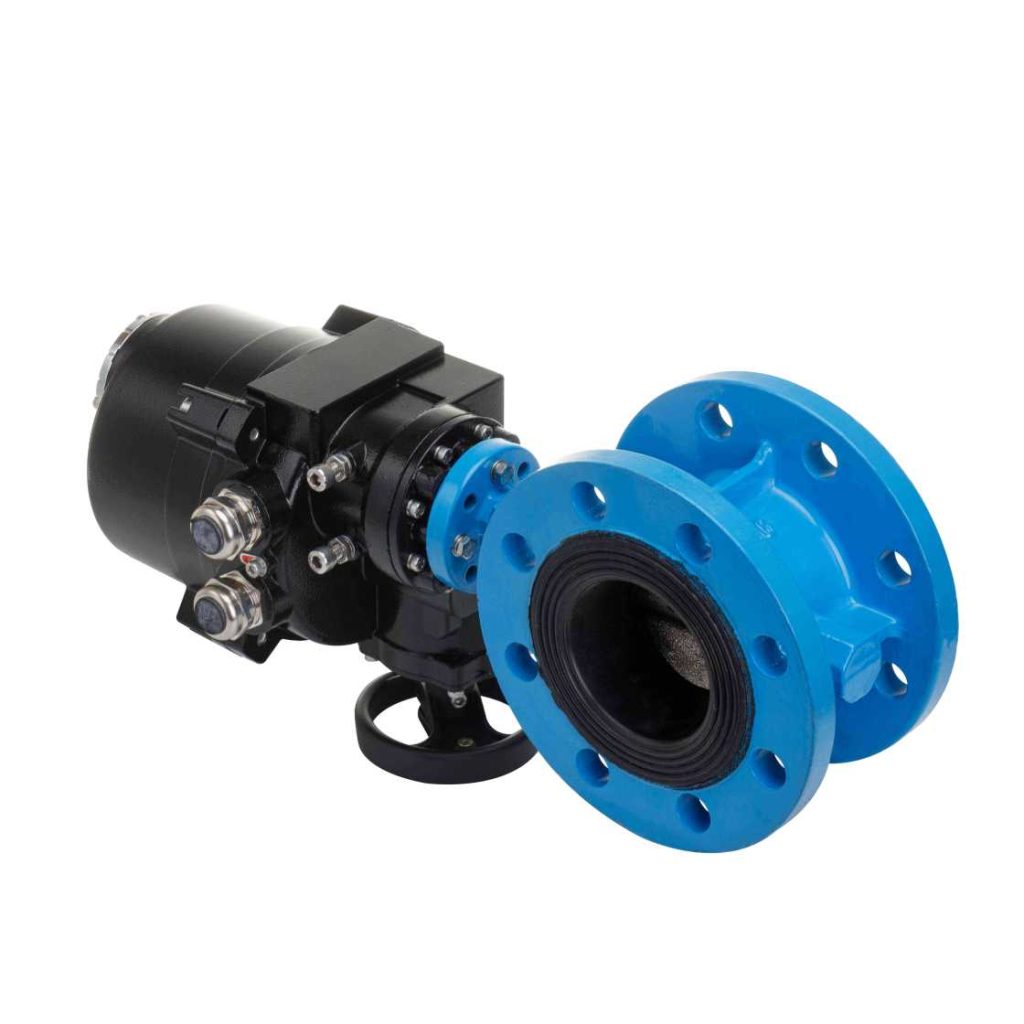

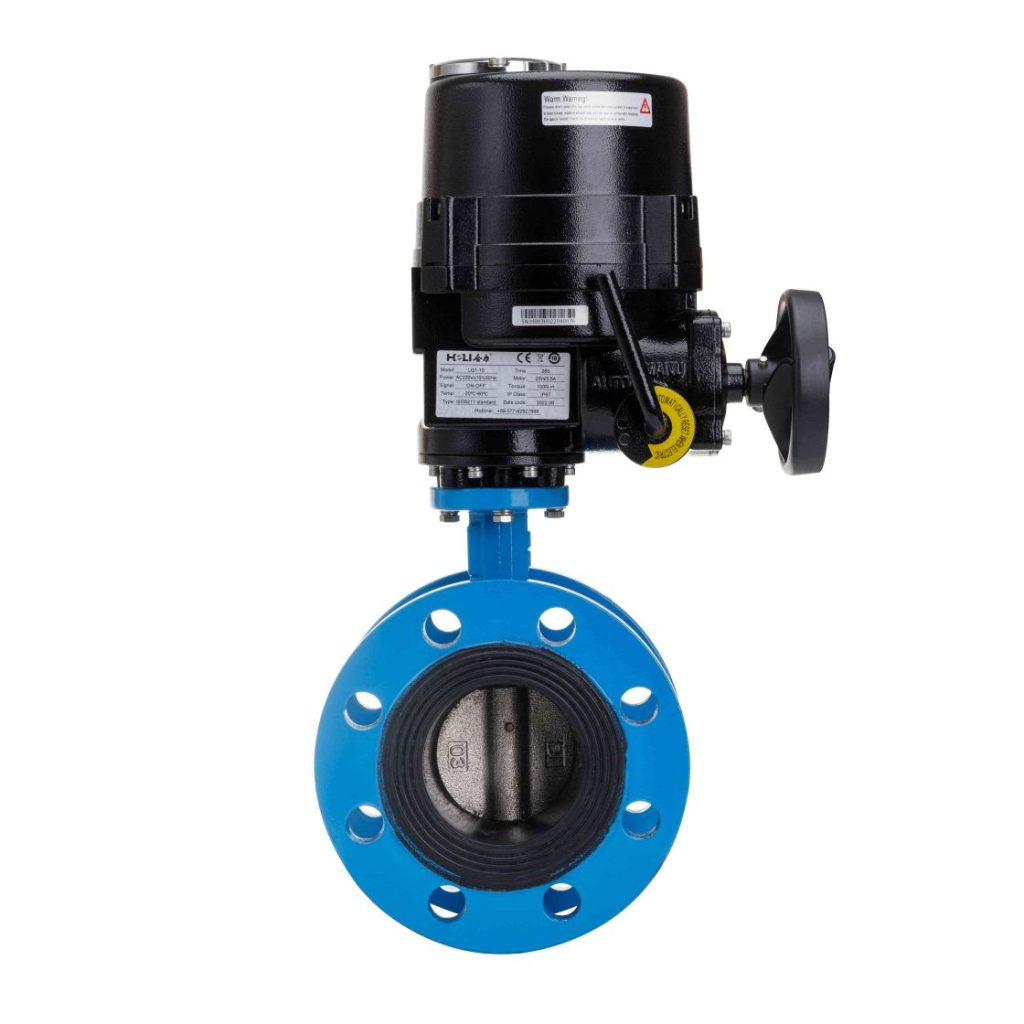

Electric flanged butterfly valves consist of a circular disc that rotates within a pipeline to regulate flow. The “flanged” design refers to the flat rim or lip of the valve, which allows for easy installation onto a pipe through bolts. This design facilitates a tight seal, minimizing the risk of leakage. The electric actuator is mounted on the valve, providing automated control, which can be integrated with a broader control system for enhanced functionality. The key components of an electric flanged butterfly valve include: Body: Typically made from materials like stainless steel, cast iron, or plastic, depending on the application’s requirements for durability and corrosion resistance.
