A 12-volt relay is an essential component in the world of electrical systems, widely used in automotive, industrial, and consumer applications. This small yet powerful device serves as an electrical switch that allows you to control high-voltage circuits using a low-voltage control signal. In this article, we will delve into the working principle, features, and common uses of 12-volt relays, offering insight into their importance and versatility.

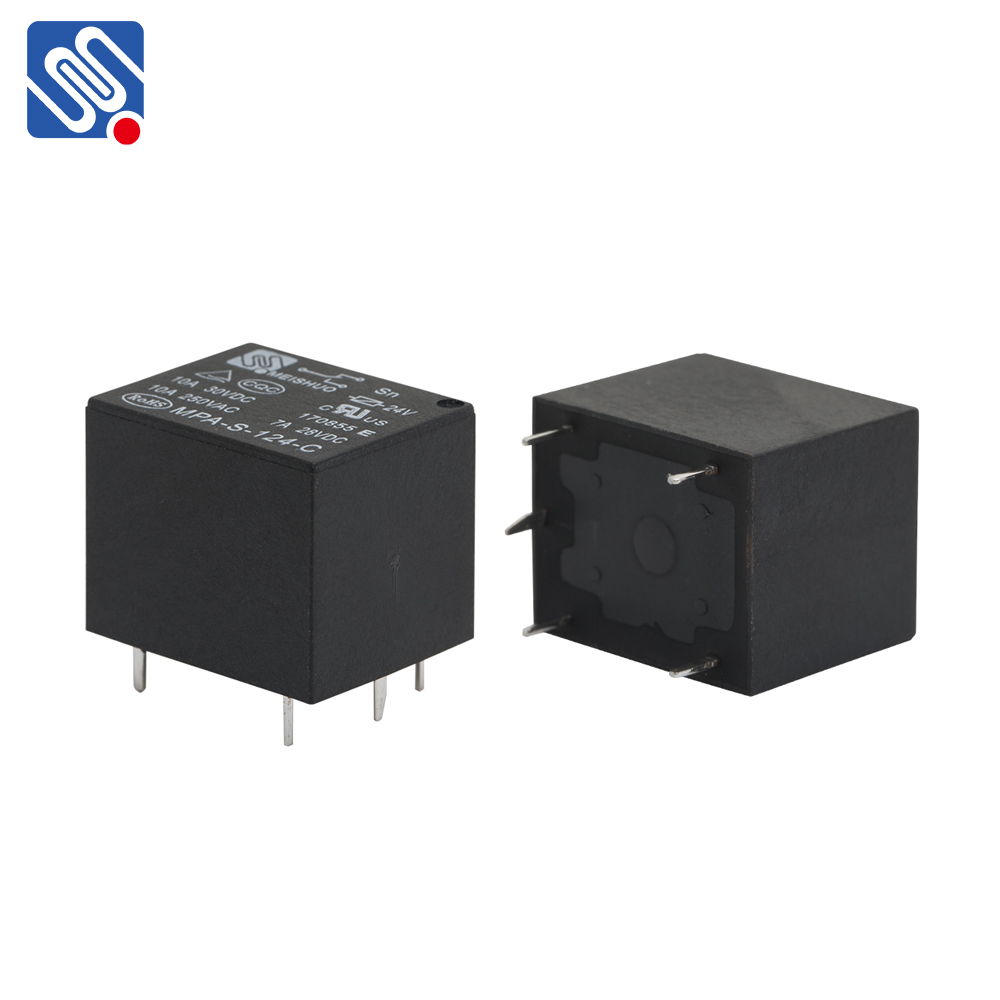

What is a 12 Volt Relay? At its core, a 12-volt relay is an electromagnetic switch that operates based on the principle of electromagnetism. It allows a low-voltage DC circuit (12V) to control a high-voltage AC or DC circuit, acting as an intermediary between the two. Relays can switch large amounts of current and voltage without directly affecting the low-voltage control circuit, which is a significant advantage in protecting sensitive electronics and providing electrical isolation. Working Principle A relay consists of three main components： a coil, a set of contacts, and a spring-loaded armature. When a 12V DC voltage is applied to the coil, it generates a magnetic field, causing the armature to move. This movement either opens or closes the contacts, depending on the type of relay (normally open or normally closed).
