A 12V relay is an essential component in many electrical and electronic systems, providing an efficient and safe method to control high-current devices with low-power signals. This article will explore the fundamental concepts of 12V relays, their working principles, applications, and the advantages they offer in various systems.

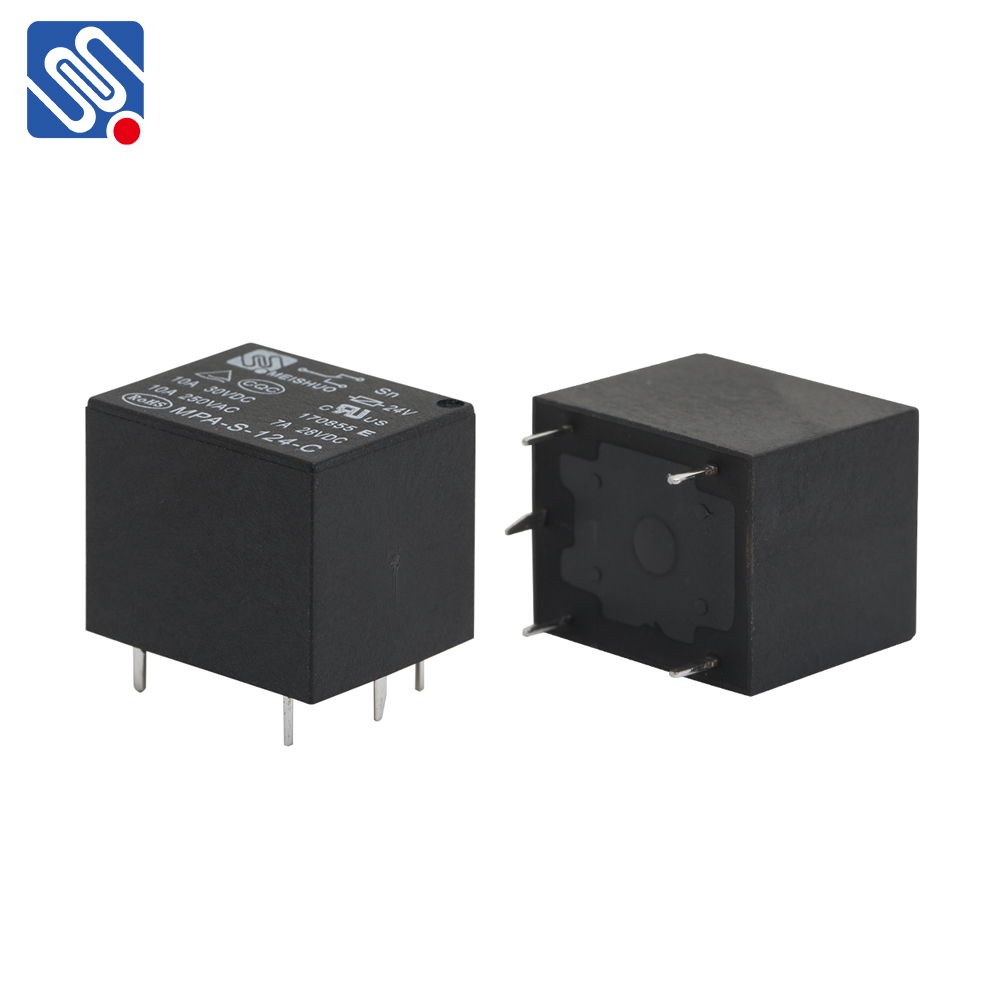

What is a 12 Volt Relay? At its core, a relay is an electrically operated switch that allows one circuit to control another. A 12V relay, specifically, operates with a 12-volt direct current (DC) power supply, which is commonly used in many automotive, industrial, and home automation systems. The 12V relay can be activated by a low-voltage control circuit, which enables it to switch high-power electrical devices, such as motors, lights, or other high-current components. The typical 12V relay consists of an electromagnet, a set of contacts, and a spring-loaded mechanism. When the coil (electromagnet) is energized by a 12V signal, it generates a magnetic field that pulls the armature (a small metal piece) towards it. This movement opens or closes the relay’s contacts, thus completing or breaking the circuit connected to the load.
