The 12V DC relay is an essential component in modern electronic systems, serving as an electromagnetic switch that allows low-power circuits to control high-power devices. Understanding its operation, applications, and selection criteria can significantly enhance the design and functionality of various electronic projects. This article aims to provide a thorough overview of the 12V DC relay, delving into its working principle, uses, and critical considerations when choosing the right relay for specific applications.

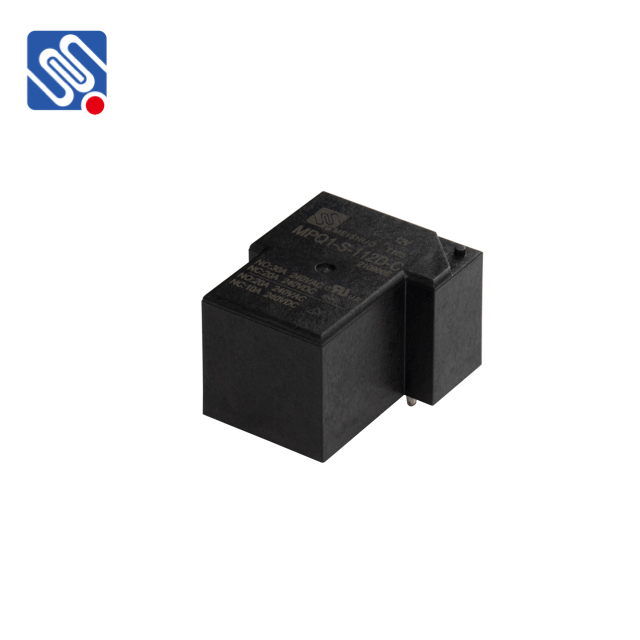

Working Principle of 12V DC Relay At its core, a 12V DC relay consists of an electromagnetic coil and one or more sets of contacts. The operation begins when a direct current (DC) voltage of 12 volts is applied to the coil. This action generates a magnetic field, which attracts a movable armature connected to the contacts. Depending on the relay type, the contacts can either be normally open (NO) or normally closed (NC). Normally Open (NO)： This configuration means that the contacts are open (disconnected) when the relay is not energized. When the relay is activated (i.e., when the 12V DC is supplied), the contacts close, completing the circuit.
