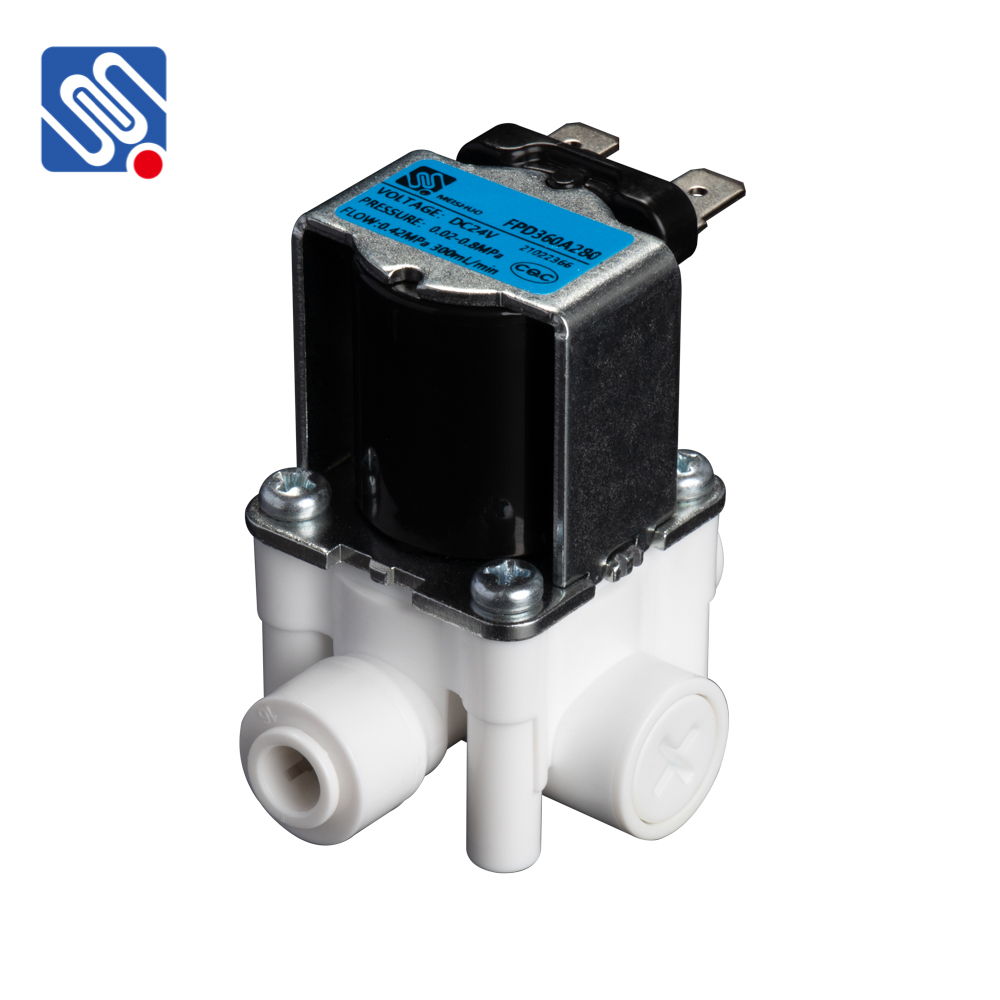

DC Solenoid Valves are essential components in a wide range of automation systems, controlling the flow of liquids, gases, and other fluids in various industrial applications. By utilizing a direct current (DC) power source to activate an electromagnetic coil, these valves play a pivotal role in fluid control mechanisms, making them crucial in processes such as hydraulics, pneumatics, and automated systems. This article delves into the working principle, types, advantages, and common applications of DC Solenoid Valves.
Working Principle of DC Solenoid Valves At the heart of any solenoid valve is the electromagnetic coil. When current is passed through the coil, it generates a magnetic field that interacts with a movable plunger or armature. The movement of this plunger opens or closes the valve seat, thus regulating the flow of fluid through the valve. In DC solenoid valves, the electrical current is supplied as direct current, typically from a 12V or 24V DC power source. The solenoid valve typically has two states： open and closed. In a normally closed valve (NC), the valve remains shut when the solenoid is not energized, and it opens when the current flows through the coil. Conversely, in a normally open valve (NO), the valve stays open without power and closes when the solenoid is energized.
