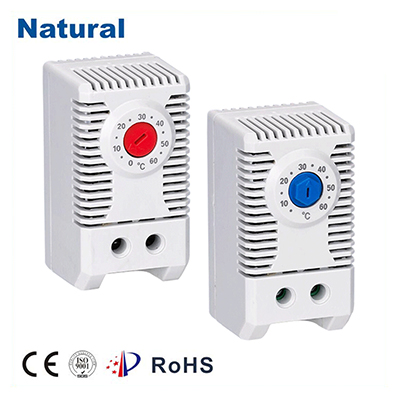

A bimetal thermostat is a temperature-regulating device that uses the unique properties of two different metals to control temperature fluctuations. It operates on the principle that when heated, two metals with different coefficients of expansion will expand at different rates, causing the bimetallic strip to bend. This bending action is then used to open or close electrical contacts, thereby regulating the temperature of a system. Bimetal thermostats are widely used in various applications, from household appliances to industrial machinery, due to their simplicity, reliability, and cost-effectiveness. In this article, we will explore the working mechanism, types, and real-world applications of bimetal thermostats.
Working Principle
The core functionality of a bimetal thermostat lies in its two metal strips. These metals, often made of brass and steel or copper and steel, are bonded together. Each metal has a different coefficient of expansion, meaning one metal expands more than the other when subjected to heat. As the temperature increases, the metal with the higher expansion rate grows faster, causing the bimetallic strip to bend or curl. This mechanical deformation moves a switch or contacts within the thermostat, triggering an on/off action. When the temperature reaches a set point, the bimetallic strip bends enough to open or close the electrical contacts. For example, in a heating system, when the temperature rises to the desired level, the thermostat will turn off the heating element by breaking the electrical circuit. Conversely, when the temperature drops below the preset threshold, the strip will revert to its original position, closing the circuit and turning the heating element back on. This feedback loop allows for precise temperature control without requiring external power sources, making the system highly efficient.
