The stainless steel pneumatic butterfly valve is a vital component in modern fluid control systems, commonly used across a wide range of industries, including chemical processing, food and beverage, pharmaceuticals, and HVAC (Heating, Ventilation, and Air Conditioning). This valve is known for its reliability, efficiency, and durability, particularly in handling fluid and gas flow with precision. In this article, we will explore the design, working principle, advantages, applications, and maintenance considerations of the stainless steel pneumatic butterfly valve.

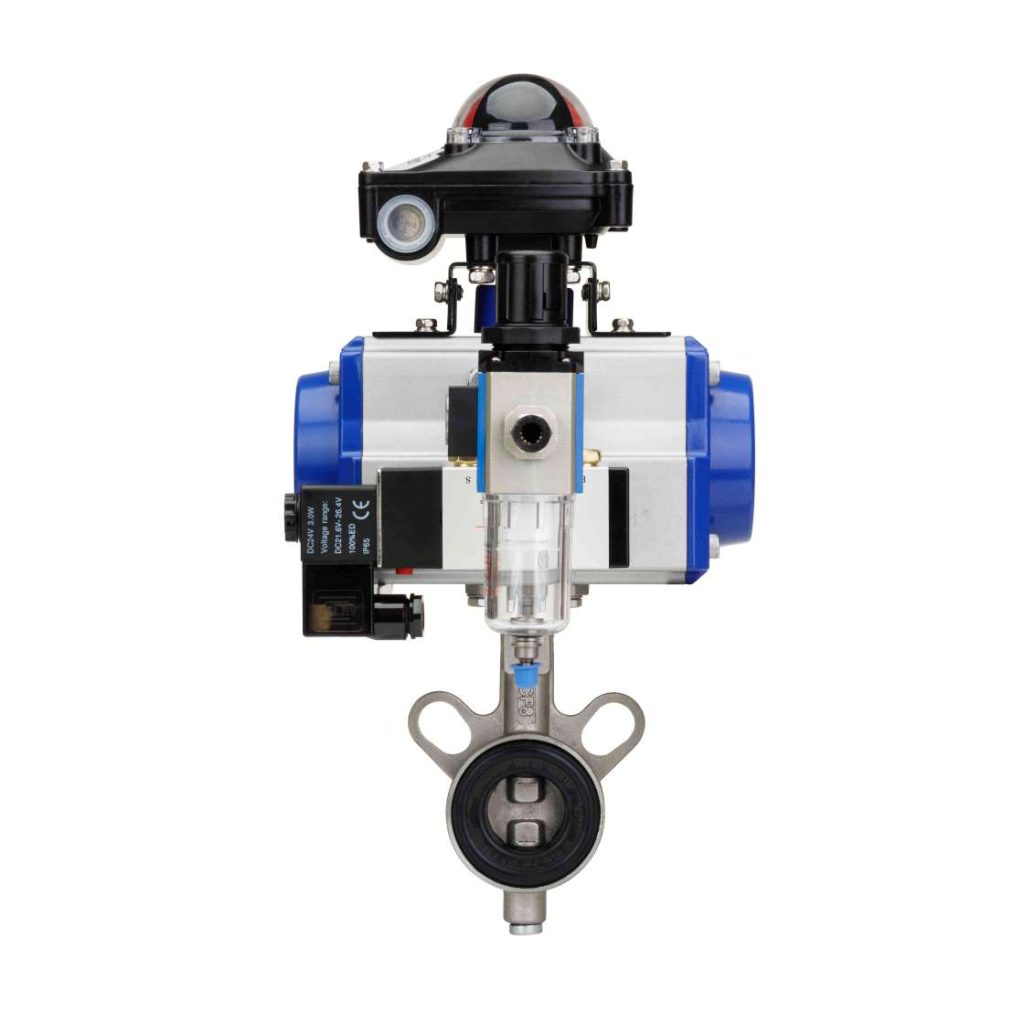

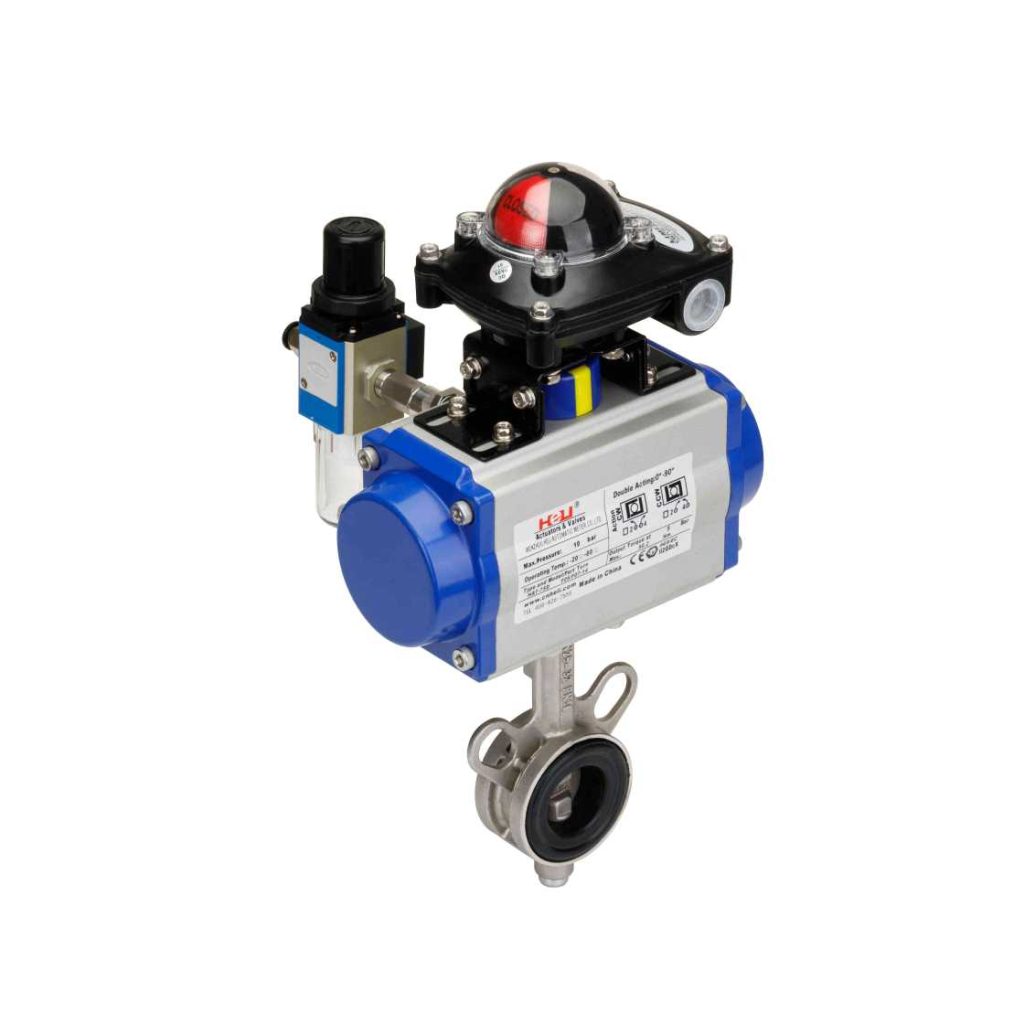

What is a Stainless Steel Pneumatic Butterfly Valve?

A butterfly valve is a type of flow control device that regulates the flow of fluids through a pipe by means of a rotating disc. The “pneumatic” part of the valve refers to the actuator that drives the valve. Pneumatic actuators are powered by compressed air, providing an efficient and quick method for valve operation. The combination of stainless steel as the valve body material and pneumatic actuation offers several benefits, including resistance to corrosion, ease of use, and high performance in demanding environments. The valve consists of a disc that rotates around an axis, and as the actuator applies pneumatic pressure, it causes the disc to rotate, thereby controlling the flow of the medium. When the valve is fully open, the disc is aligned with the flow direction, allowing unrestricted passage of fluid. When closed, the disc blocks the flow entirely, achieving a seal.
