A 12V DC Relay is an essential electrical component used in various applications where low voltage control is required to switch high power devices. It is a versatile tool commonly found in automotive systems, industrial control circuits, and household appliances. This article will explore the basic working principles of a 12V DC relay, its applications, and the advantages it brings to electrical systems.

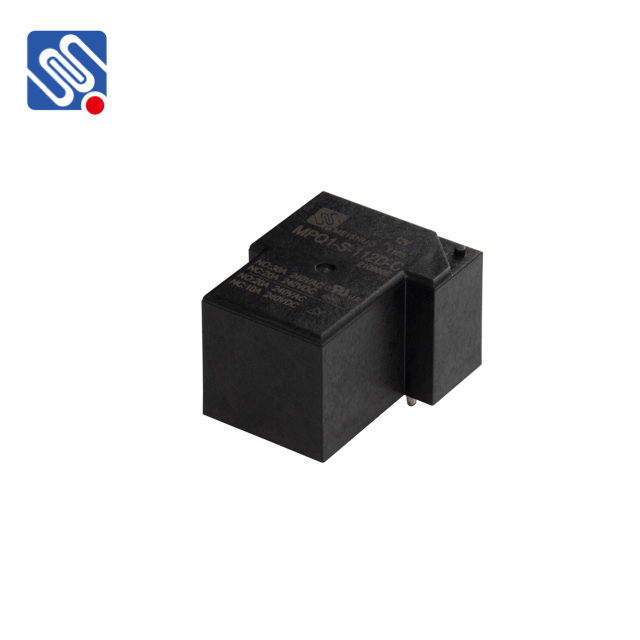

What is a 12V DC Relay? At its core, a 12V DC relay is an electrically operated switch. It consists of a coil, an armature, and a set of contacts. When a 12V DC voltage is applied to the coil, it generates a magnetic field that pulls the armature, causing the contacts to either close (in the case of a normally open relay) or open (in the case of a normally closed relay). This action enables the relay to control the flow of electricity in a circuit, allowing for the activation or deactivation of high-power components without directly controlling them with a low-voltage signal. The primary components of a 12V DC relay are:
