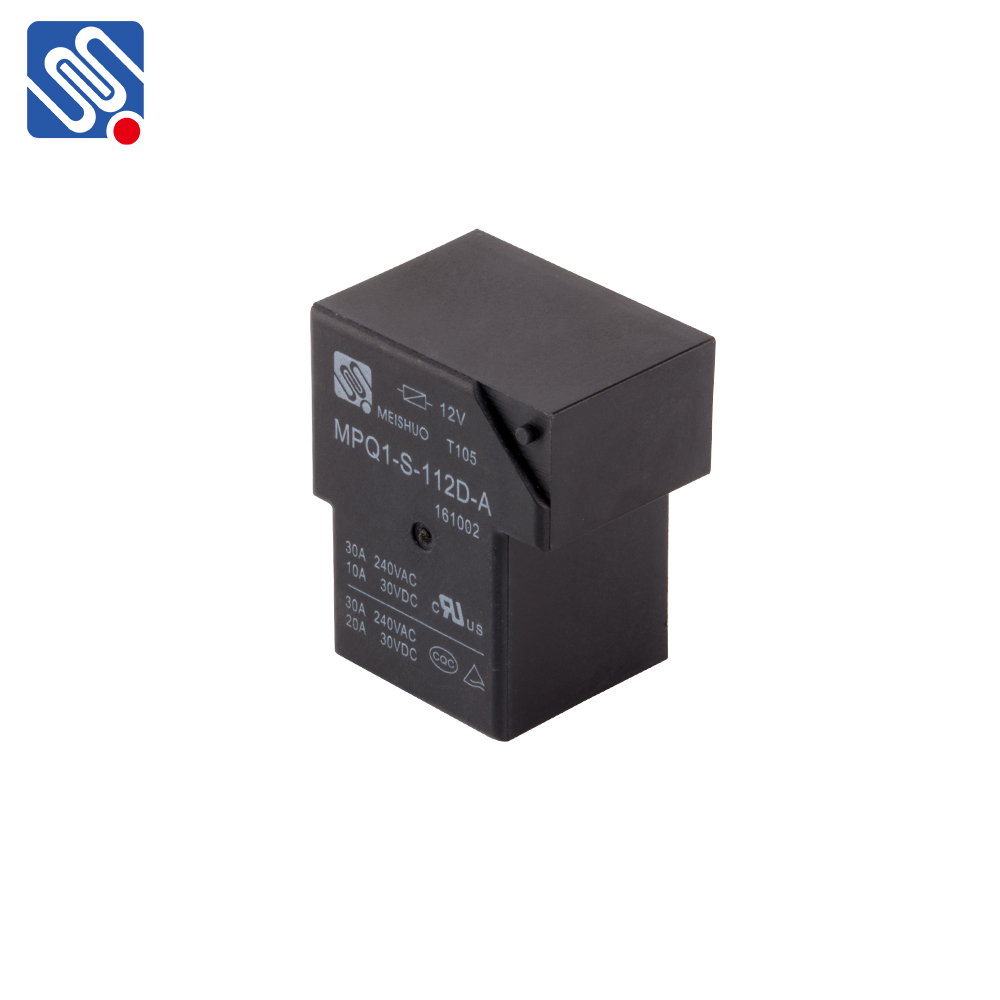

Relay connections are a fundamental concept in electrical and automation systems. A relay acts as an electronic switch, enabling low-power control signals to manage higher-power circuits. This ability to isolate control circuits from power circuits is crucial in various applications, from home appliances to industrial automation. This article delves into the mechanics of relay connections, types of relays, and common applications.

What is a Relay? At its core, a relay is an electromagnetic device designed to control a circuit by opening or closing contacts in response to a low-power signal. Relays typically consist of a coil, contacts, and an armature. When a current flows through the coil, it generates a magnetic field that moves the armature, changing the state of the contacts. This allows the relay to either complete or break the circuit, thus controlling the connected device or system. Relays are often used when it’s necessary to control a high-voltage or high-current circuit with a low-voltage, low-current signal. For example, a microcontroller might send a small signal to a relay, which, in turn, switches a large motor on or off. This principle is employed across many industries, from automotive systems to home automation.
