Molded case switches (MCS) play a pivotal role in the world of electrical engineering, serving as vital components in circuit protection and control systems. These devices are designed to provide reliable and safe operation for a variety of applications, ranging from industrial machinery to commercial electrical panels. In this article, we will delve into the key features, benefits, applications, and maintenance considerations associated with molded case switches.

What is a Molded Case Switch?

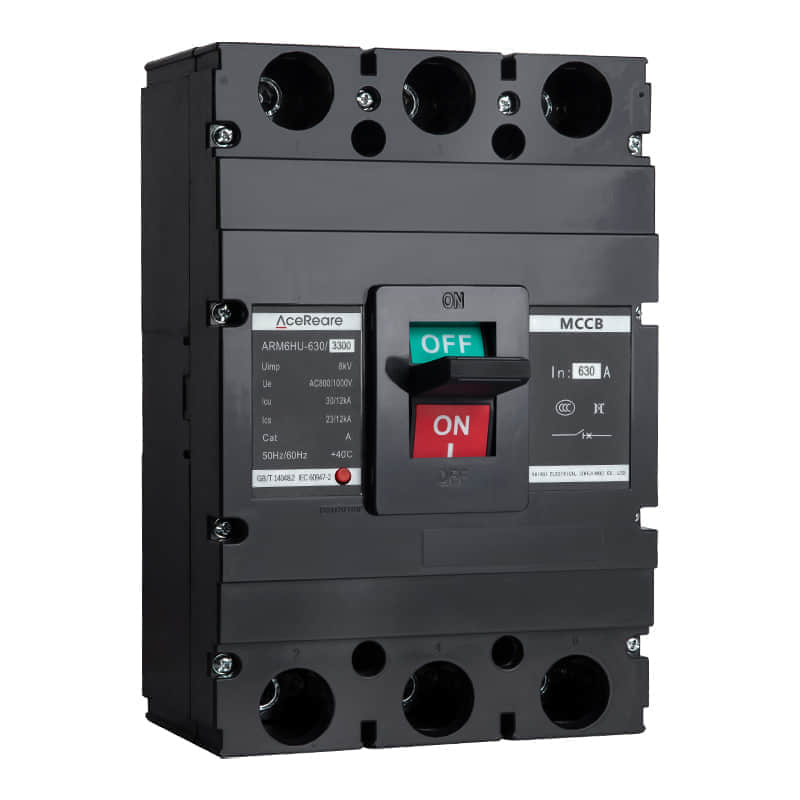

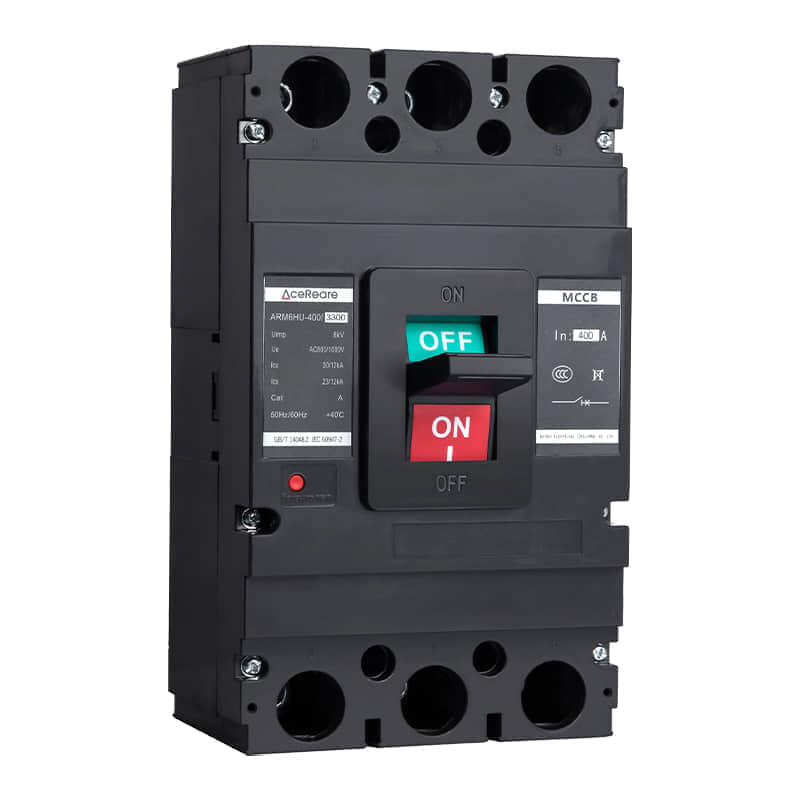

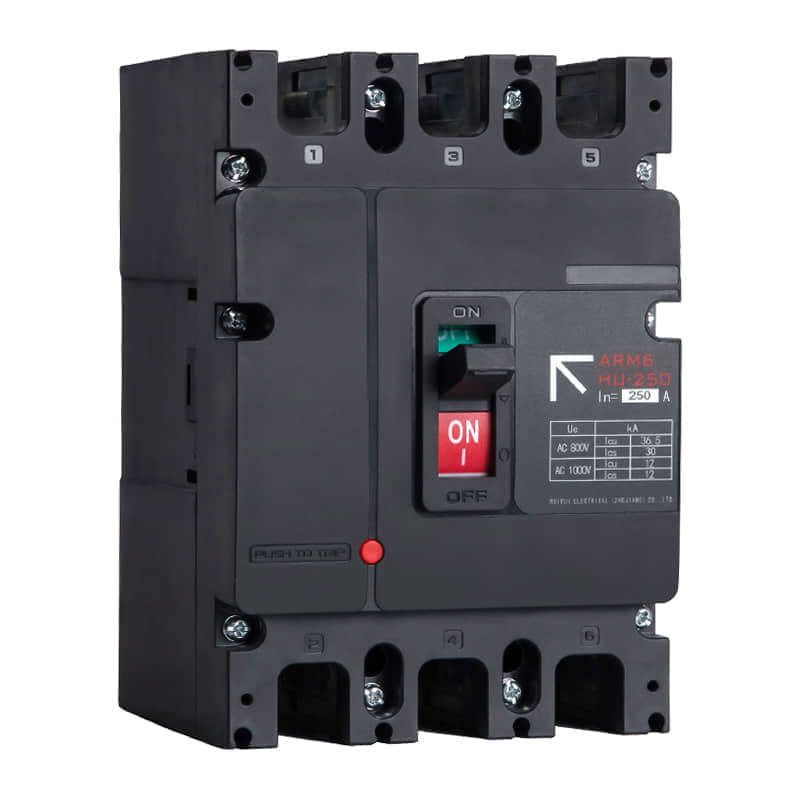

A molded case switch is a type of electrical switchgear that combines circuit protection and control capabilities in a compact unit. Typically enclosed in a durable plastic casing, these switches are designed to handle high currents while safeguarding electrical circuits from overloads and short circuits. They are equipped with a thermal-magnetic trip mechanism, which ensures that the switch interrupts the current flow when it exceeds a predetermined threshold, thereby preventing potential damage to equipment and reducing the risk of electrical fires. Key Features One of the ultimate advantages of molded case switches is their versatility. They are available in various ratings and sizes, making them suitable for a wide range of applications. MCS are typically rated from 15A to 3,200A, accommodating different circuit requirements. Additionally, they offer multiple configurations, including manual, automatic, and remote operation, allowing for tailored solutions based on specific operational needs.
