Electric butterfly valves are a type of quarter-turn valve commonly used in various industrial applications to regulate the flow of fluids or gases. These valves combine the reliability of butterfly valves with the automation capabilities of electric actuators, making them an ideal choice for many processes where precise flow control is essential. This article delves into the operation, benefits, applications, and considerations of electric butterfly valves.

What is an Electric Butterfly Valve?

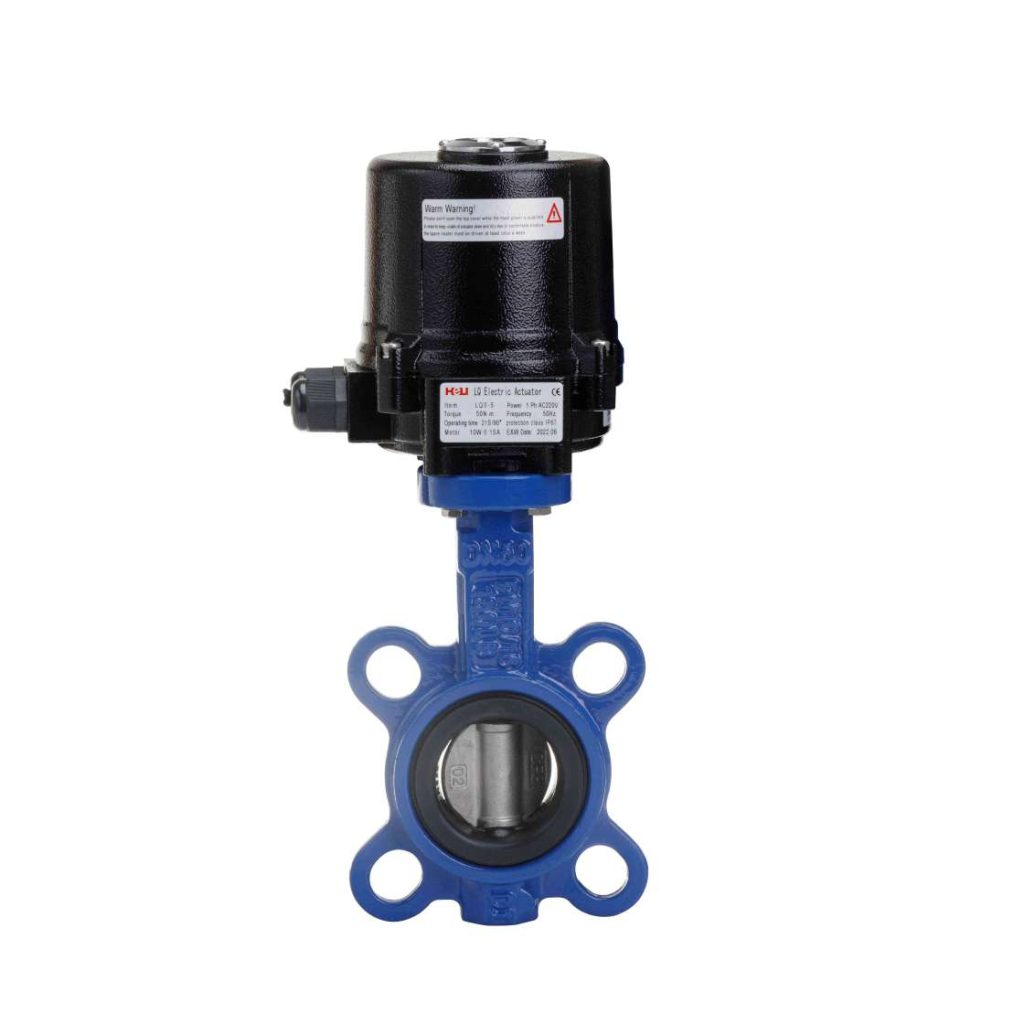

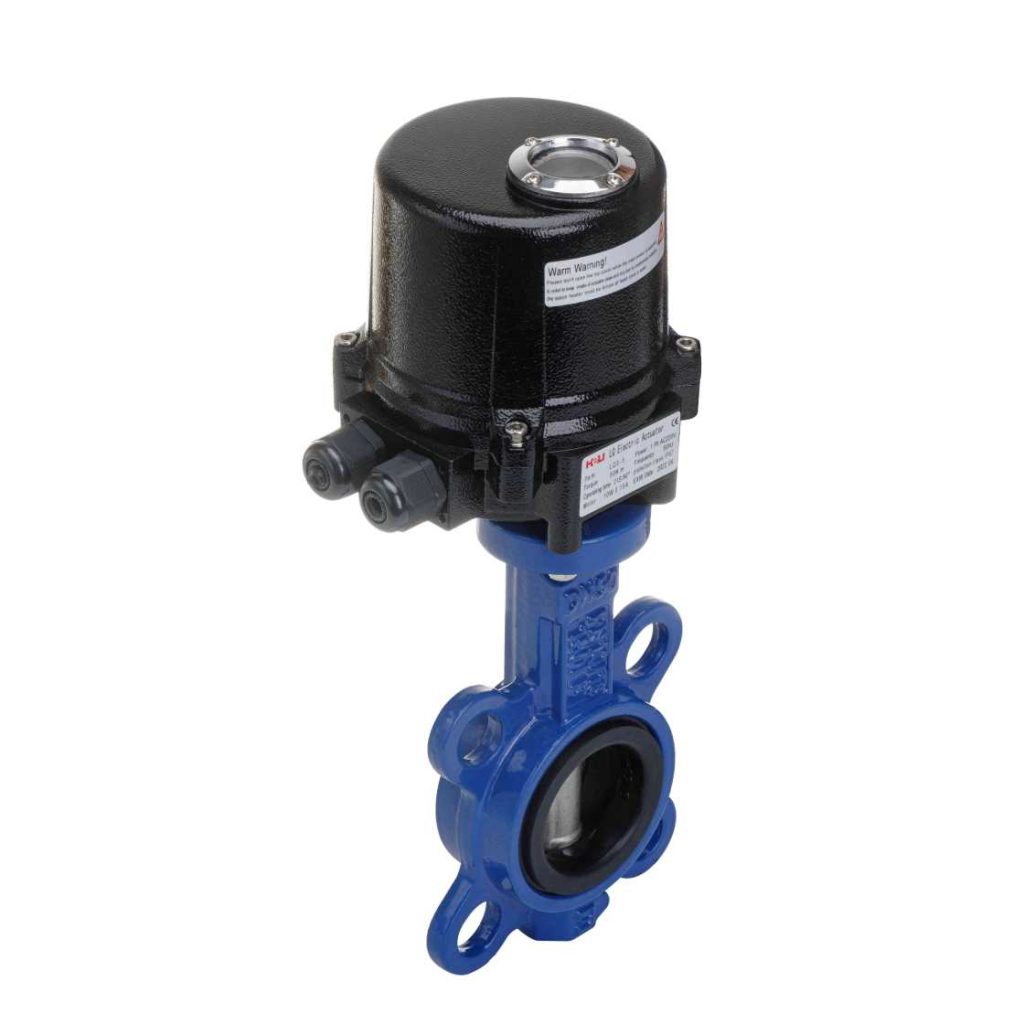

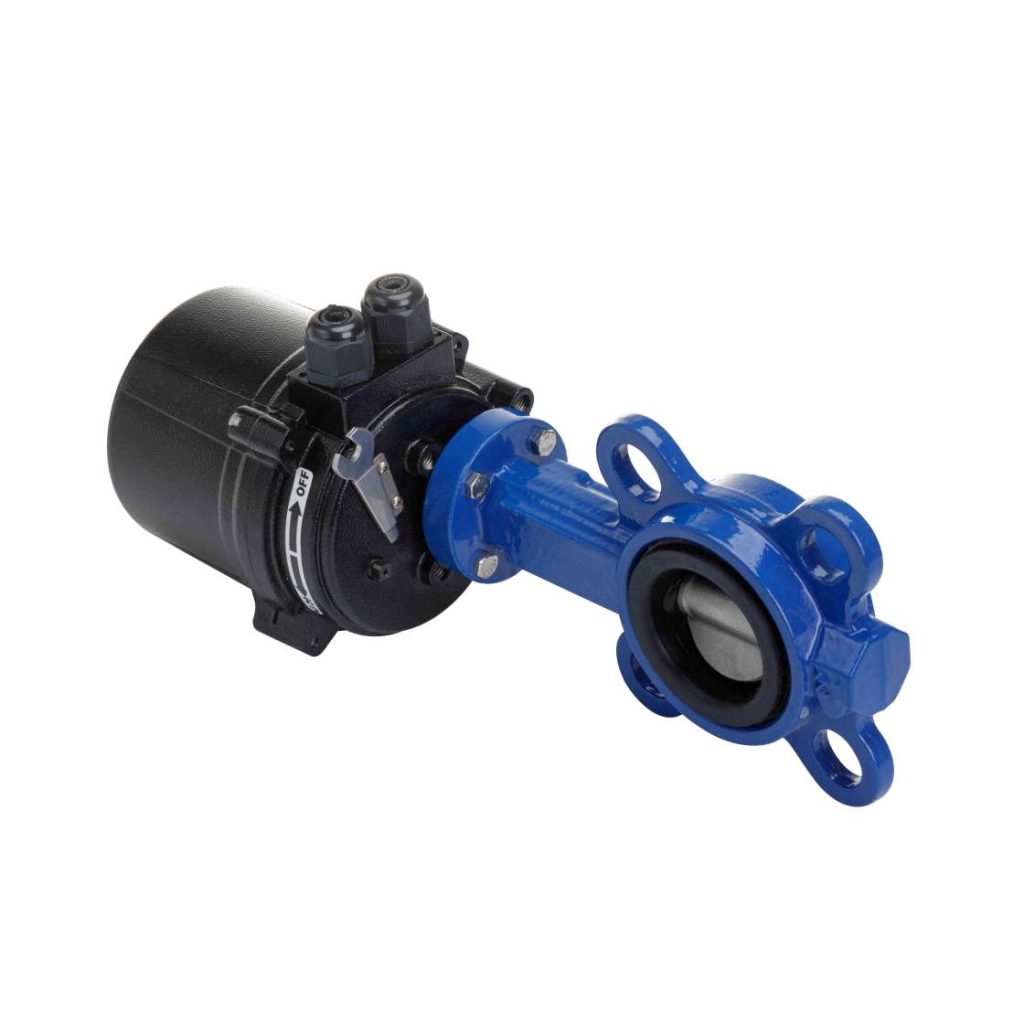

An electric butterfly valve is a valve that uses an electric actuator to control the position of a disc or vane inside the valve body. The actuator can precisely adjust the valve’s opening and closing, providing accurate regulation of the flow of fluids or gases. The basic design consists of a circular disc mounted on a rotating shaft. When the valve is closed, the disc fully obstructs the flow. As the valve is opened, the disc rotates 90 degrees, allowing fluid to flow freely through the valve. The electric actuator, which powers the valve, typically operates using an electric motor, making it an excellent choice for systems that require automation and remote control. These valves are often used in applications where a manual valve would be difficult or unsafe to operate.
