Relays have been an integral part of electrical engineering and electronic systems for decades. Among the various types of relays available, the 12V relay stands out due to its versatility and ease of use, particularly in automotive and automation applications. This article delves into the functionality of 12V relays, their components, working principles, types, and practical applications.

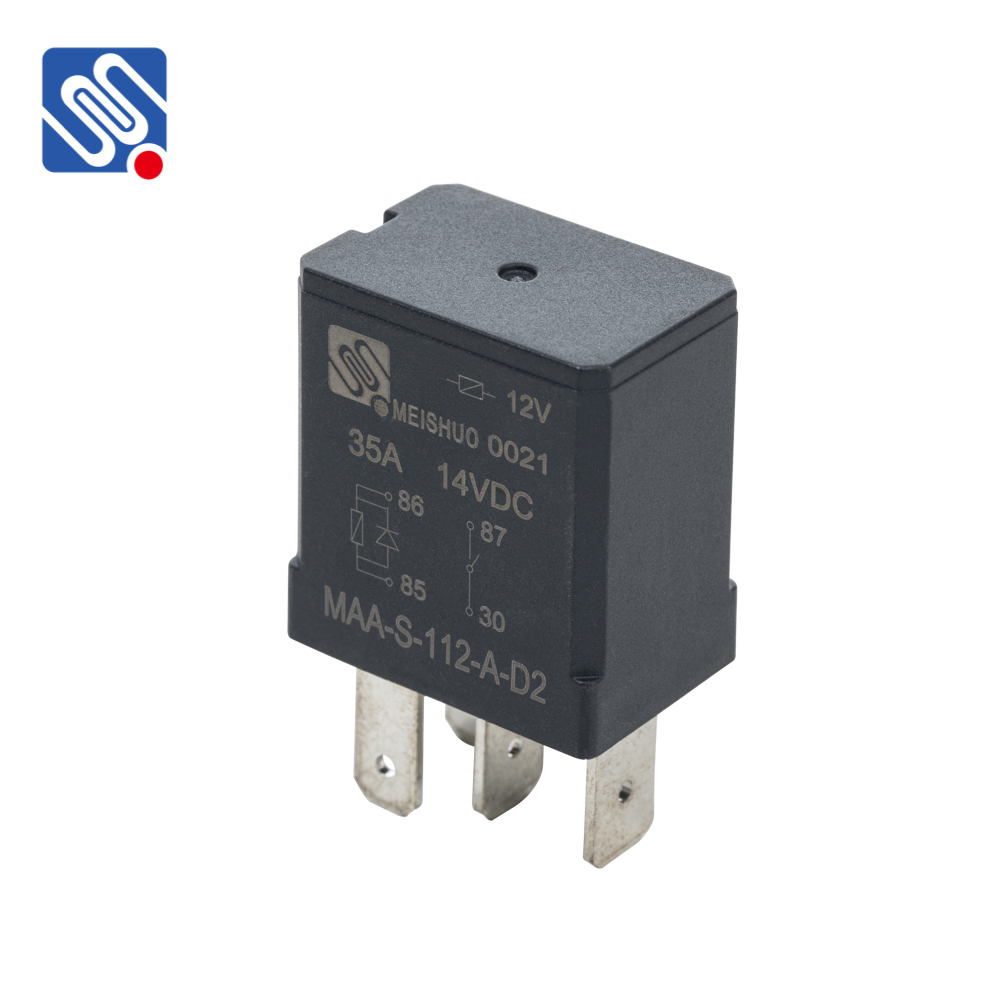

What is a 12V Relay? At its core, a relay is an electromagnetically operated switch that allows a low power control signal to operate a larger power circuit. A 12V relay specifically operates with a coil voltage of 12 volts, making it particularly useful in applications that utilize a 12V power supply, such as automotive systems. Components of a 12V Relay A typical 12V relay consists of several main components： Electromagnetic Coil： This is the core component responsible for the relay’s operation. When voltage is applied to the coil, it generates a magnetic field that activates the switch.
