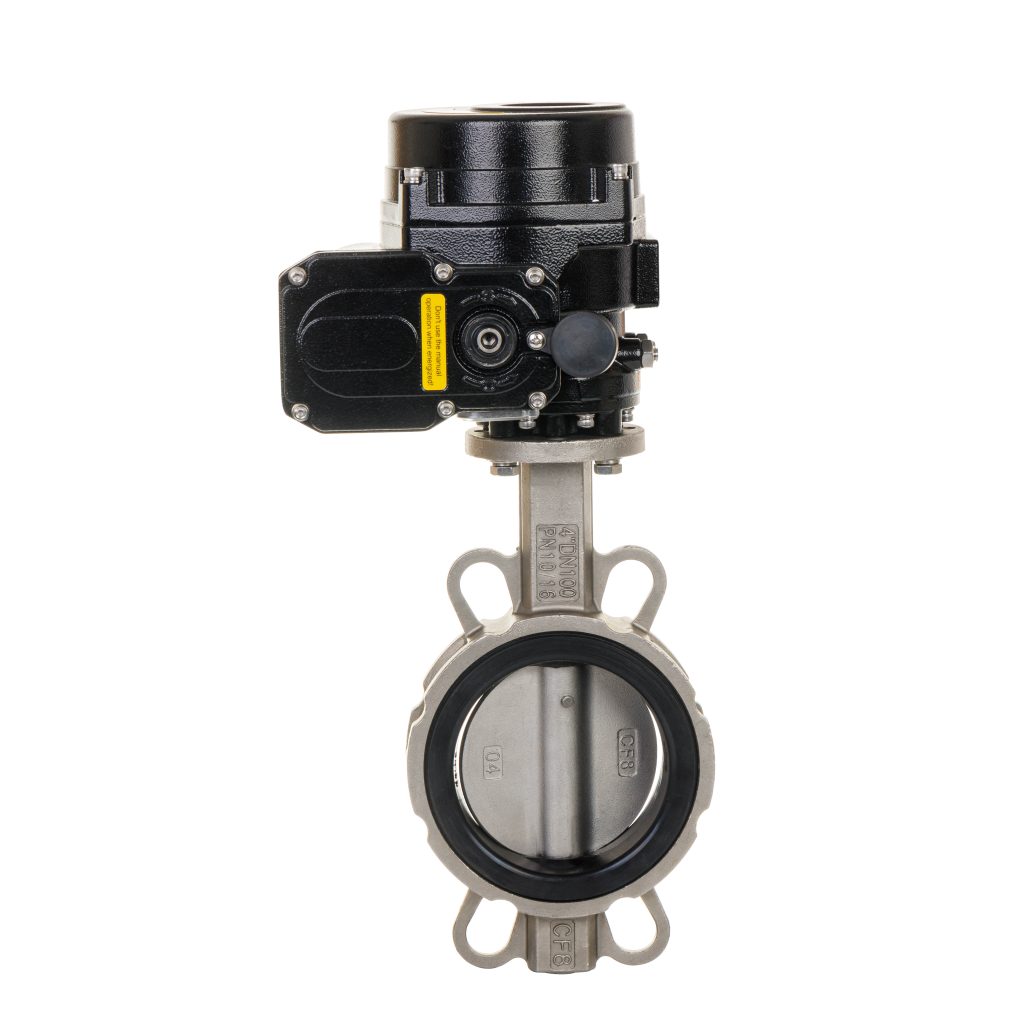

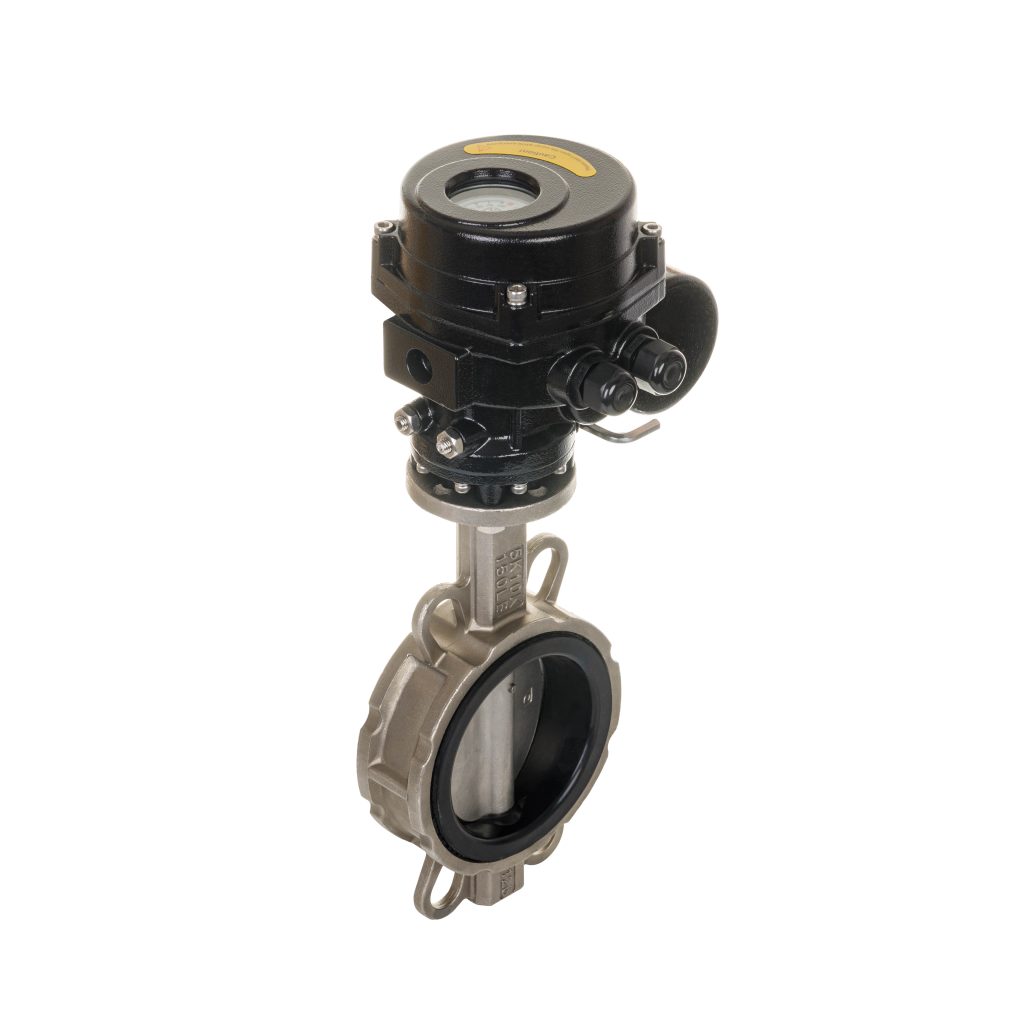

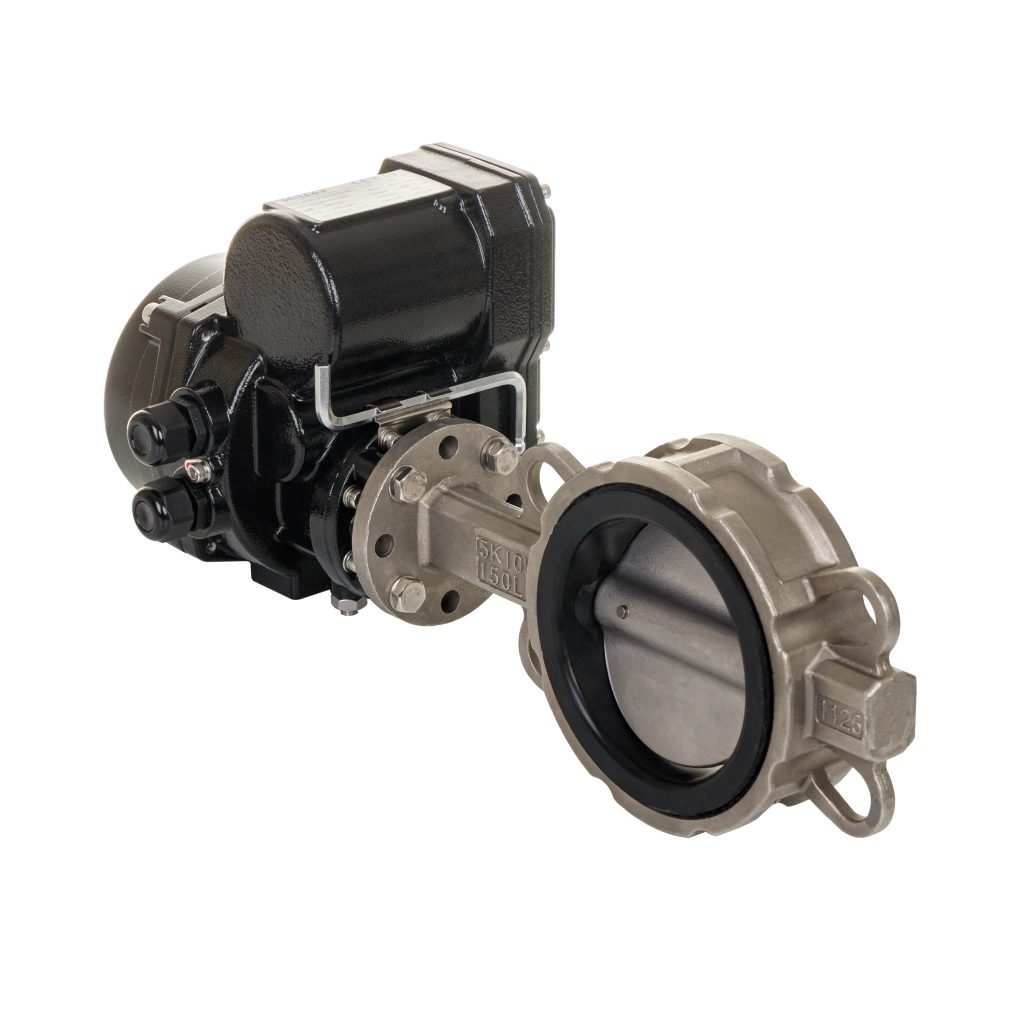

The WCB Electric Flanged Soft Seal Butterfly Valve is a cutting-edge solution widely used in various industries for regulating fluid flow. This type of valve combines the reliability of traditional butterfly valves with the advanced features of electric actuation, making it an essential component in modern fluid control systems. In this article, we will delve into the design, features, applications, and advantages of the WCB Electric Flanged Soft Seal Butterfly Valve.

Design and Construction

The WCB Electric Flanged Soft Seal Butterfly Valve is designed to offer superior performance in a compact form. Made from high-quality cast iron (WCB stands for “wrought carbon steel”), the valve is durable and resistant to corrosion, making it suitable for a wide range of applications. The soft seal mechanism, typically made from elastomers like EPDM or NBR, provides an excellent sealing performance, reducing leakage and ensuring that the valve operates efficiently. The valve features a simple yet effective design that includes a rotating disc positioned in the center of the pipe. When the valve is opened, the disc rotates 90 degrees, allowing fluid to flow through with minimal resistance. Conversely, when closed, the disc seals against the body of the valve, preventing flow. The electric actuator, mounted on top of the valve, enables precise control over the opening and closing of the valve, making it ideal for automated systems.
