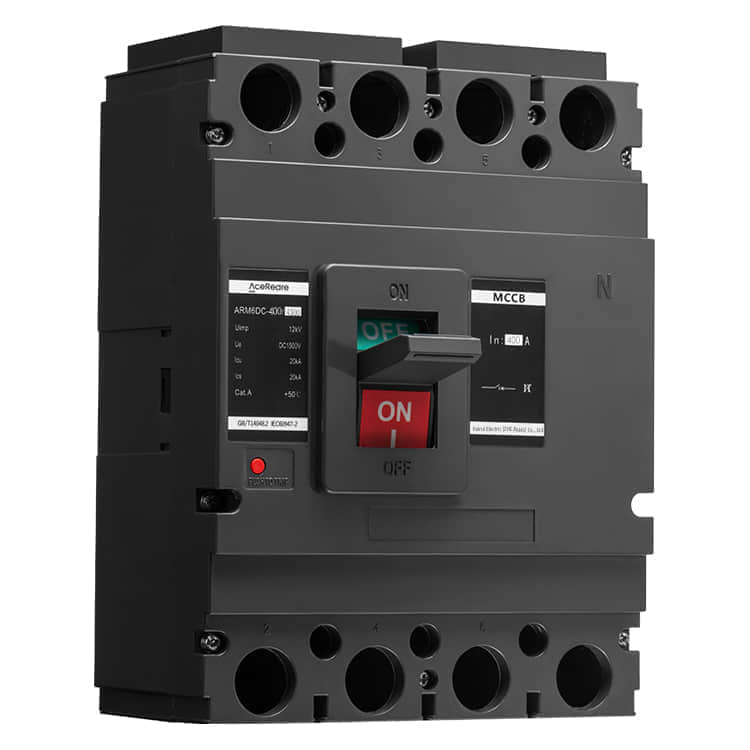

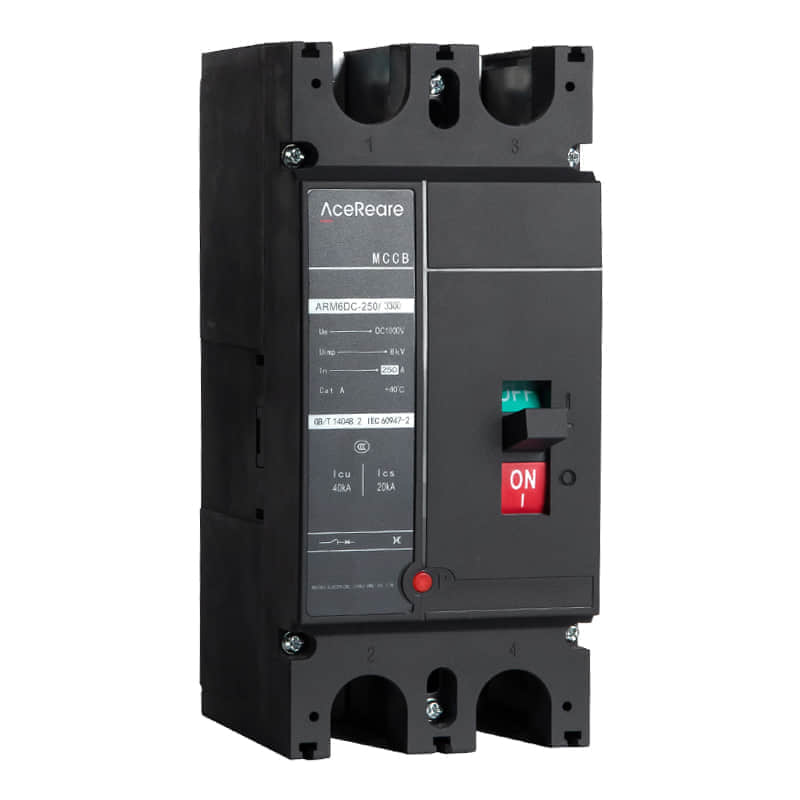

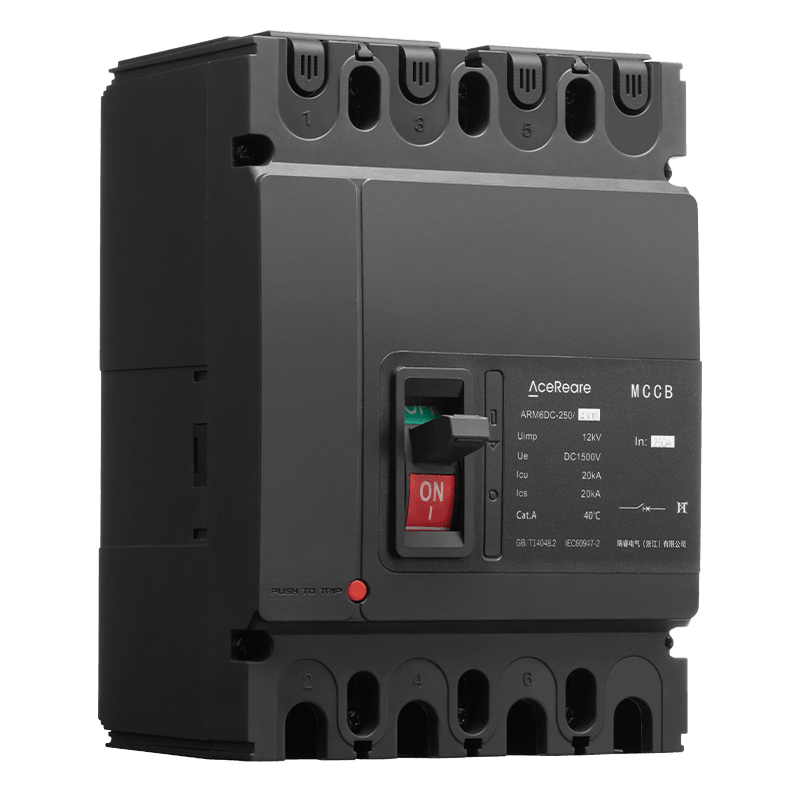

Moulded Case Circuit Breakers (MCCBs) for PV

In the ever-expanding world of renewable energy, photovoltaic (PV) systems have gained significant traction for their ability to harness the power of the sun and convert it into electricity. As these systems become increasingly prevalent, it’s crucial to ensure their safety and reliability. Moulded Case Circuit Breakers (MCCBs) play a pivotal role in achieving this by safeguarding PV installations from electrical faults and overloads.

What is an MCCB? MCCBs are electrical protection devices that function as circuit breakers, designed to interrupt the flow of electrical current when it exceeds safe levels. These devices consist of a moulded case made of non-conductive material, which houses the essential components responsible for detecting and responding to electrical faults. The Importance of MCCBs in PV Systems Overcurrent Protection One of the primary functions of MCCBs in PV systems is to provide overcurrent protection. PV arrays generate electrical energy when exposed to sunlight, and this energy must be properly controlled and distributed. In the event of an electrical fault or overload, an MCCB will trip, preventing damage to the system components and reducing the risk of fire or other hazards. Voltage Fluctuations Voltage fluctuations can be detrimental to the performance and longevity of PV equipment. MCCBs can help stabilize the system by interrupting the circuit when voltage levels deviate from the prescribed range, preventing damage to sensitive components like inverters and charge controllers. Protection Against Short Circuits Short circuits are a common occurrence in electrical systems and can result in severe damage if not promptly addressed. MCCBs are equipped with short-circuit protection mechanisms that swiftly disconnect the circuit in the event of a short circuit, minimizing damage and ensuring the safety of the PV installation. Key Features of MCCBs for PV Systems Adjustable Trip Settings MCCBs are versatile in their applications and can be adjusted to different trip settings based on the specific requirements of the PV system. This flexibility allows for precise protection tailored to the installation’s needs. Remote Monitoring and Control With the advancement of technology, MCCBs for PV systems can now be equipped with remote monitoring and control capabilities. This means that system operators can remotely access and manage the MCCBs, enhancing the overall efficiency and safety of the PV system. Coordination with Other Protection Devices MCCBs can be seamlessly integrated with other protection devices within the PV system, such as fuses and surge protectors. This coordination ensures comprehensive protection against various electrical faults and disturbances. Conclusion Moulded Case Circuit Breakers (MCCBs) are indispensable components in photovoltaic (PV) systems, offering essential protection against overcurrents, voltage fluctuations, and short circuits. Their flexibility, remote monitoring capabilities, and compatibility with other protection devices make them a vital element in ensuring the safety and reliability of PV installations. As the adoption of PV systems continues to grow, the role of MCCBs in safeguarding these renewable energy sources becomes increasingly significant, helping us harness the power of the sun sustainably and safely.
