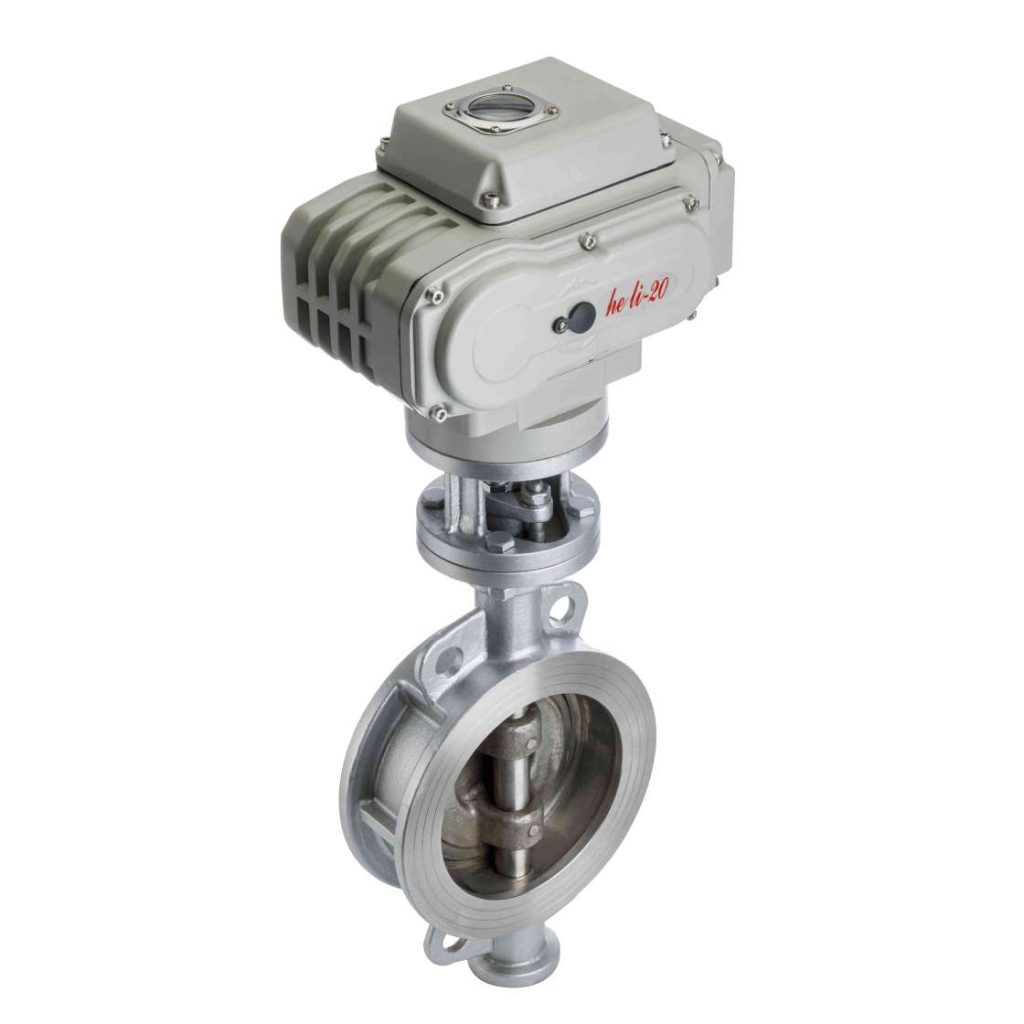

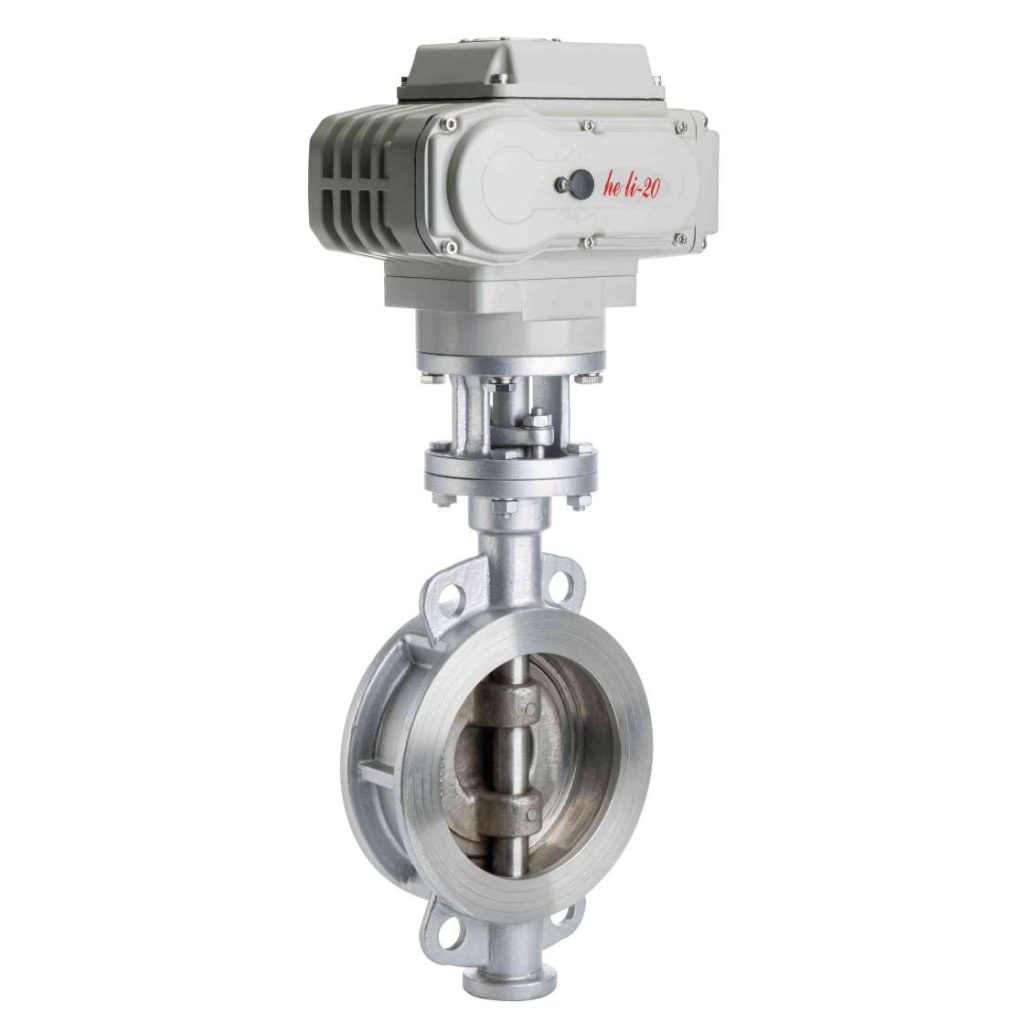

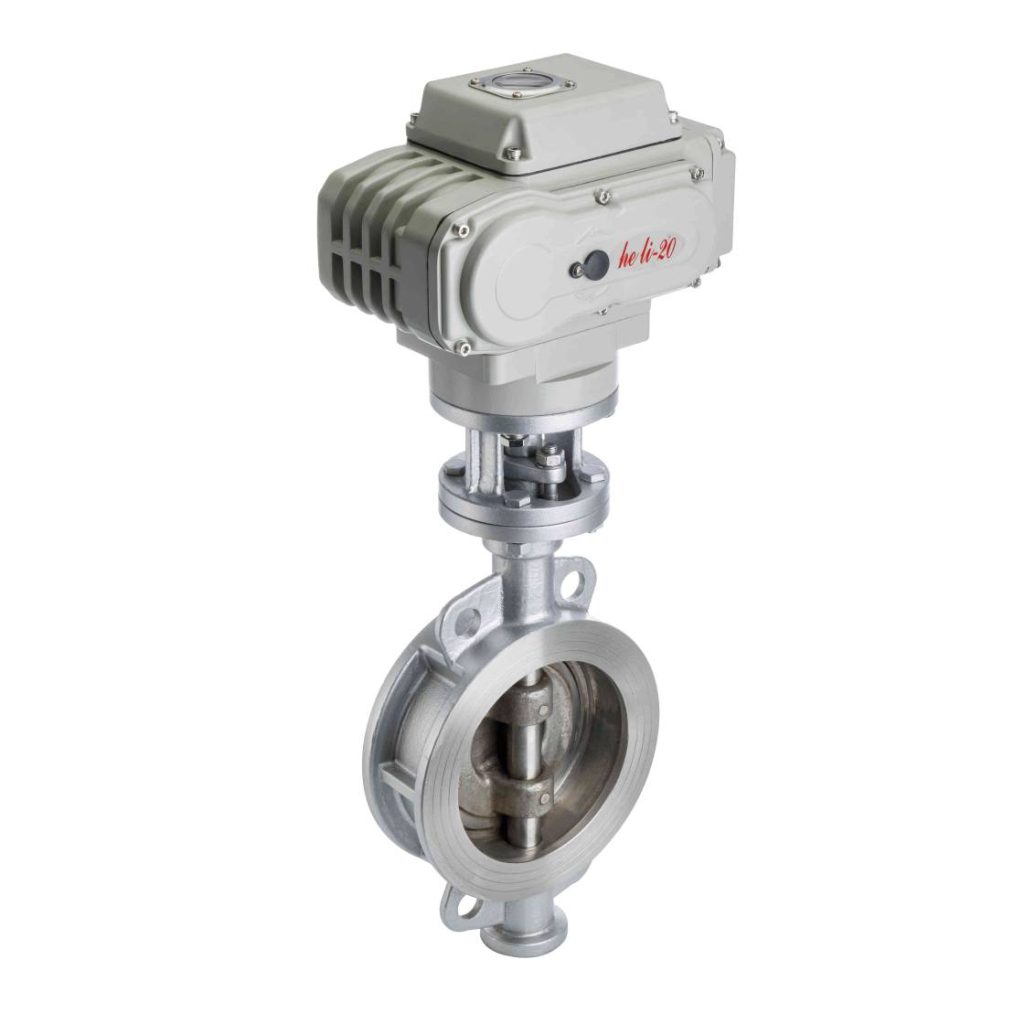

The Electric Three Eccentric Butterfly Valve is an advanced valve technology that has gained significant attention in various industrial sectors. Known for its robust design and efficient performance, this valve type is particularly ideal for systems that require high precision and reliable control over fluid flow. In this article, we will explore the fundamental design features, advantages, and the diverse applications of the Electric Three Eccentric Butterfly Valve.

Design and Working Principle

The Electric Three Eccentric Butterfly Valve gets its name from the unique three-eccentric disc design, which is a crucial factor in its exceptional sealing capabilities and long-lasting durability. Unlike conventional butterfly valves, the three-eccentric design ensures that the sealing mechanism operates smoothly without excessive wear, even under high pressure or extreme temperature conditions. The first eccentricity refers to the offset of the valve shaft, the second to the angular deviation of the valve disc, and the third is the positioning of the valve seat. This multi-point eccentricity allows the disc to make gradual contact with the seat, ensuring a tight seal when the valve is closed. This design minimizes friction between the sealing surfaces, reducing the risk of valve seat damage and making the valve suitable for applications involving harsh environments.
