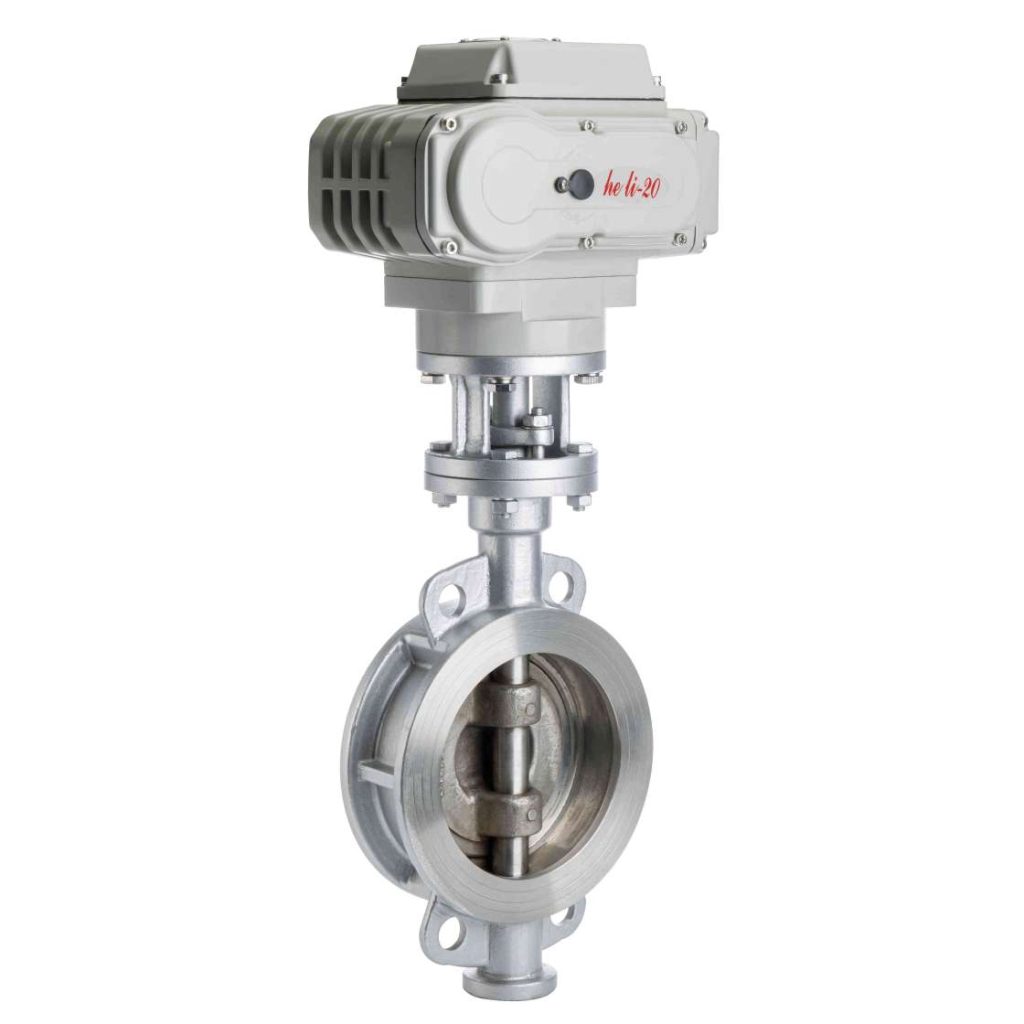

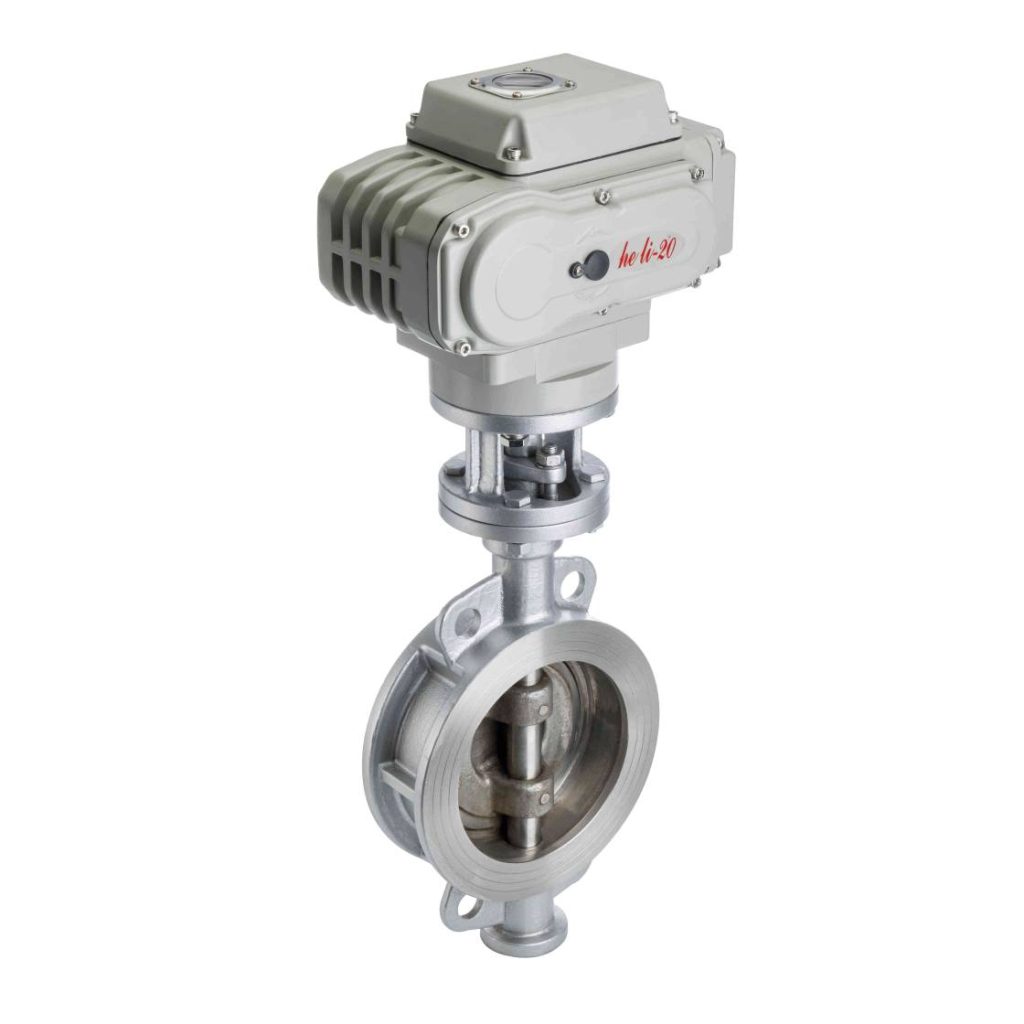

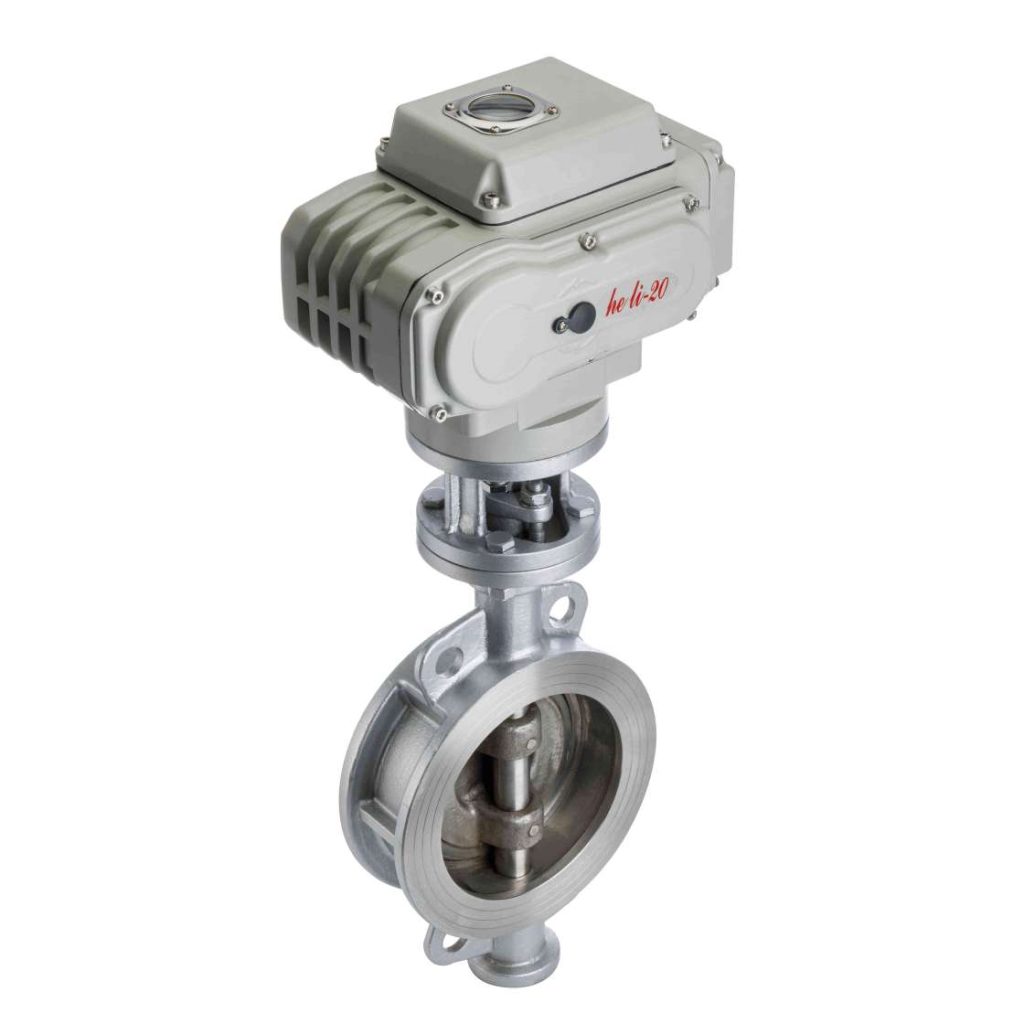

The Electric Three Eccentric Butterfly Valve is a sophisticated valve widely used in various industries for fluid control, offering superior sealing, durability, and performance. This valve type integrates a unique design with an electric actuator, making it particularly effective in demanding applications where high reliability and precision are required. In this article, we will explore the design, features, advantages, and applications of the Electric Three Eccentric Butterfly Valve.
Design and Working Principle
The Electric Three Eccentric Butterfly Valve features a three-eccentric design, where the axis of the valve disc (or butterfly) is not aligned with the axis of the valve seat. This design introduces three distinct offsets, resulting in a non-linear movement of the disc as it opens and closes. The three eccentricities are： First Eccentricity： The offset between the disc center and the valve stem. Second Eccentricity： The offset between the disc center and the valve seat. Third Eccentricity： The offset between the disc center and the axis of rotation. The benefit of this multi-offset configuration is that the disc does not directly contact the seat during opening, reducing friction and wear. As the valve closes, the disc moves into a precise sealing position, ensuring a strong and leak-tight seal.
