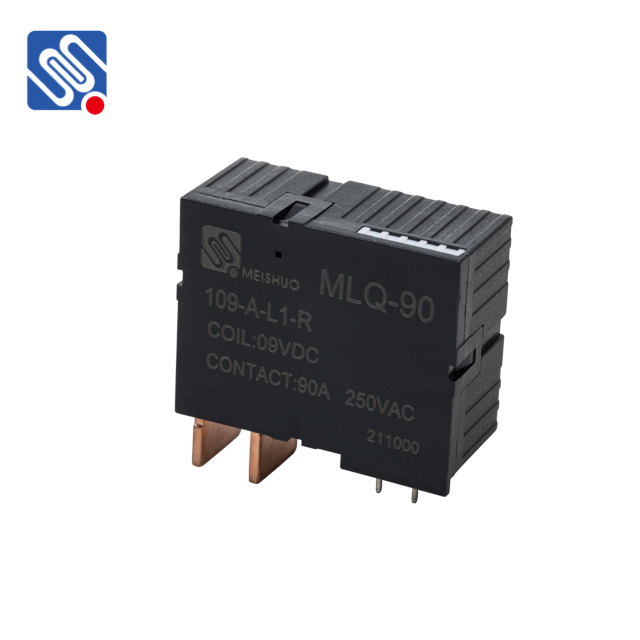

Bistable relays, also known as latching relays, have become an essential component in modern electrical and electronic systems, offering a unique solution to power efficiency and control. Unlike traditional relays, bistable relays are designed to maintain their state even after the input signal is removed, providing enhanced reliability and energy-saving capabilities. This article will explore the working principle, features, advantages, and applications of bistable relays, shedding light on their growing importance in the fields of automation, energy management, and control systems.

Working Principle of Bistable Relays A bistable relay operates based on the principle of having two stable states. These states are typically the “on” and “off” positions, which are maintained without requiring continuous power. A bistable relay contains two electromagnets (or coils), each responsible for switching the relay between the two states. When a pulse is applied to one of the coils, the relay switches to the opposite state. Once switched, the relay remains in that state until another pulse is applied to reverse the position. This behavior is what makes bistable relays different from conventional relays, which require a constant current to keep them in their switched position. In a bistable relay, the power is only required during the switching process, and the relay holds its position without any further power supply, making it a low-power solution.
